Primary Cleaner
Polyurethan Primary Cleaner MDP
- 1 piece full width Polyurethane (PU) blade option
- Quick and easy installation
The MDP - MATO Drop-on Primary Cleaner is the simplest primary cleaner available on the market, with its easy tension spring application for constant tensioning and reduced adjustability.
Quick and easy blade replacement by removing the blade locking pin is simple. The MDP range of Polyurethane Primary Cleaners are manufactured with a unique self-lubricating blade to reduce friction and blade wear.
MDP Technical Specifications
Tension Methods: CS - Compression Spring.
MDP120 | MDP185 | MDP235 | MDP235HD | MDP306HD | |
Blade Material | PU | PU | PU | PU | PU |
Blade Height | 120mm | 185mm | 235mm | 235mm | 306mm |
Belt Speed | up to 3,5m/s | up to 3,5m/s | up to 5,0m/s | up to 5,0m/s | up to 7,5m/s |
Head Pulley Diameter | 250mm-500mm | 250mm-900mm | 400mm-1000mm | 400mm-1000mm | 500mm-2100mm |
Mechanical Fasteners | Yes | Yes | Yes | Yes | Yes |
Reversing Belts |
Yes | Yes | Yes | Yes | Yes |
Polyurethan Primary Cleaner MTP
MTP - MATO T-Slot Primary Cleaner
- Individual 150mm Polyurethane (PU) blade option
The MTP replacement blades are supplied in 150mm lengths and have an easy slide on slide off application.
The MTP P2 PU blade has MATO’s unique self lubricated additive to prevent friction and blade wear.
MTP Technical Specifications
Tensioning Methods: Bolt Tensioning
|
||
MTP185 | MTP235 | |
Blade Material | PU | PU |
Blade Height | 185mm | 235mm |
Belt Speed | up to 3,5m/s | up to 5m/s |
Head Pulley Diameter | 250mm-900mm | 400mm-1000mm |
Mechanical Fasteners | Yes | Yes |
Reversing Belts | Yes | Yes |

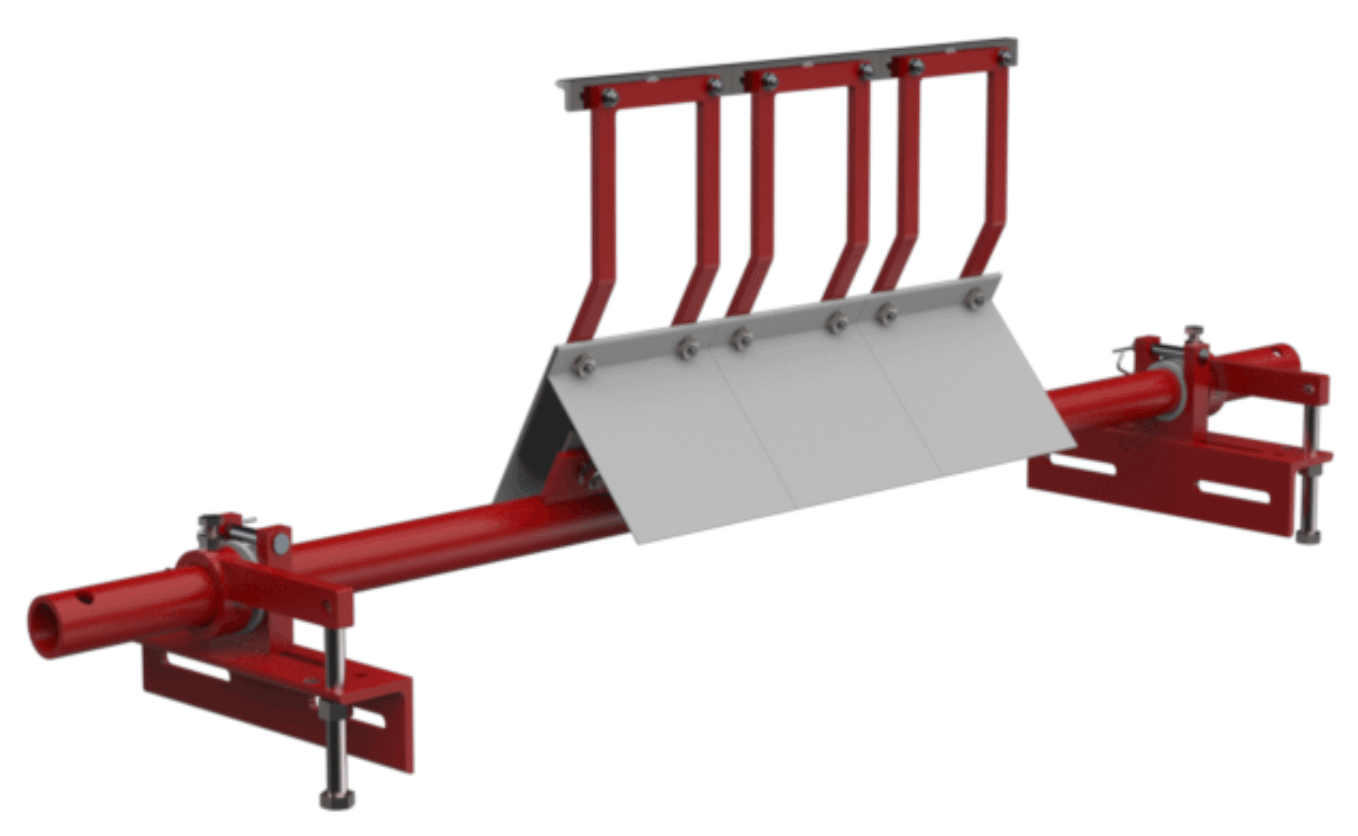

Polyurethan Primary Cleaner MCP1
- Individual Tungsten Carbide (TC) Blade
MATO standard MCP1 blade/ cushion arrangement.
2 blade options are available and 4 different arm sizes to suit multiple pulley diameters
MCP1 Technical Specifications
Tension Methods: Bolt Tensioning.
MCP1-SS | MCP1-S | MCP1-M | MCP1-L | |
Blade Material | TC | TC | TC | TC |
Blade Width | 200mm | 200mm | 200mm | 200mm |
Blade Height | 120mm | 185mm | 235mm | 306mm |
Belt Speed | up to 5m/s | up to 5m/s | up to 5m/s | up to 5m/s |
Head Pulley Diameter | 250mm-500mm | 500mm-800mm | 800mm-1000mm | 1000mm-1500mm |
Mechanical Fasteners | No | No | No | No |
Reversing Belts | Yes | Yes | Yes | Yes |
