Secondary Cleaner MCS

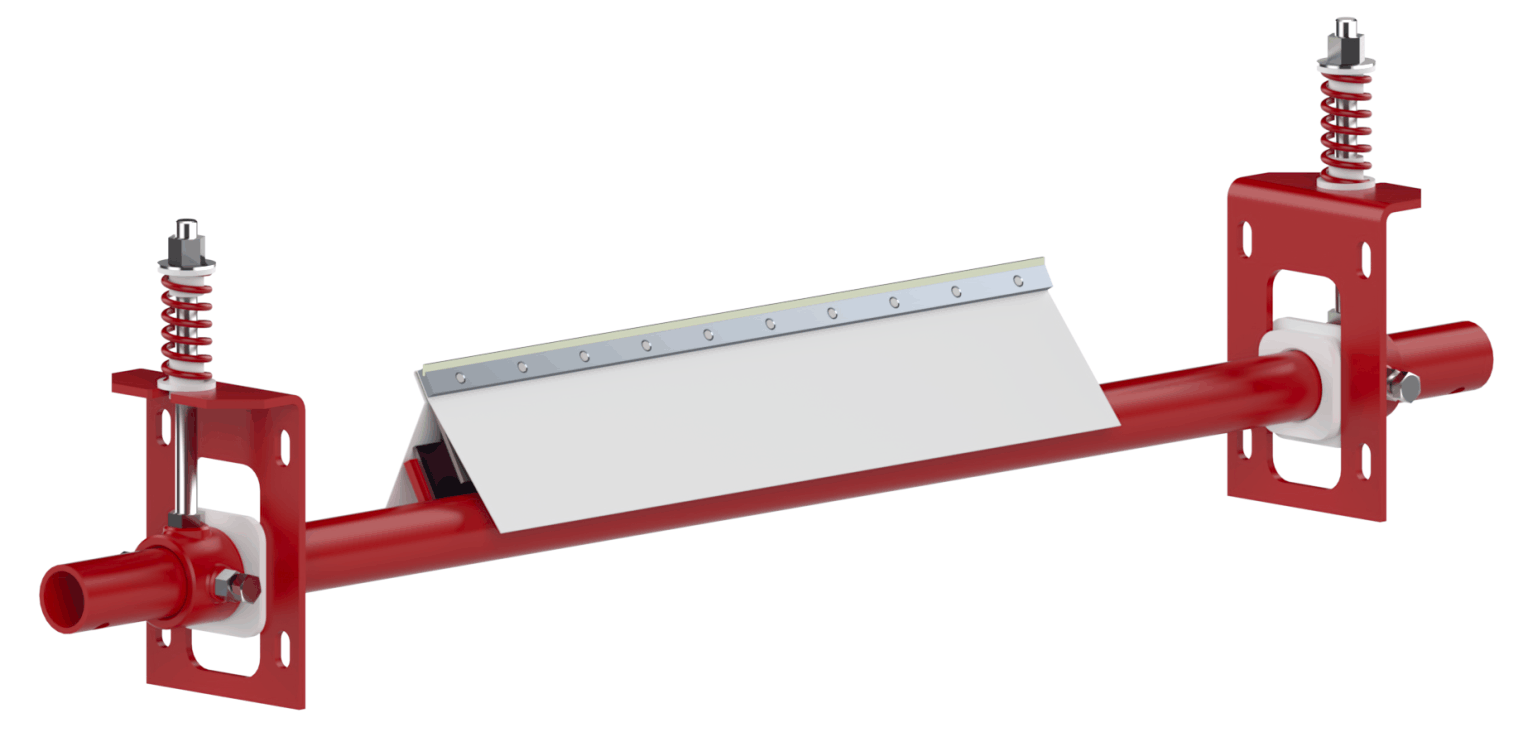

MCS2 TC
The MCS2 secondary cleaner is an excellent
option to reduce the amount of carry back
returned down the conveyor line.
The MCS2 allows for individual blade
movement as each blade/cushion is
individually mounted. Can be used as a stand
alone cleaner, or for improved performance
add in a pre cleaner on the head pulley.
The MCS2 is suitable for vulcanised belts only.
There are 2 blade options available (TI)
Tungsten Impact blade for harsh conditions, or
the (TL) Tungsten Long-life blade where belt
conditions are ideal.
Technical Informations
| MCS2 TC | |
| Blade Material | TC - Tungsten Carbide |
| Blade Increments | 150mm |
| Belt Speed | up to 5,0m/s |
| Reversing Belts | No |
| Mechanical Fasteners | No |

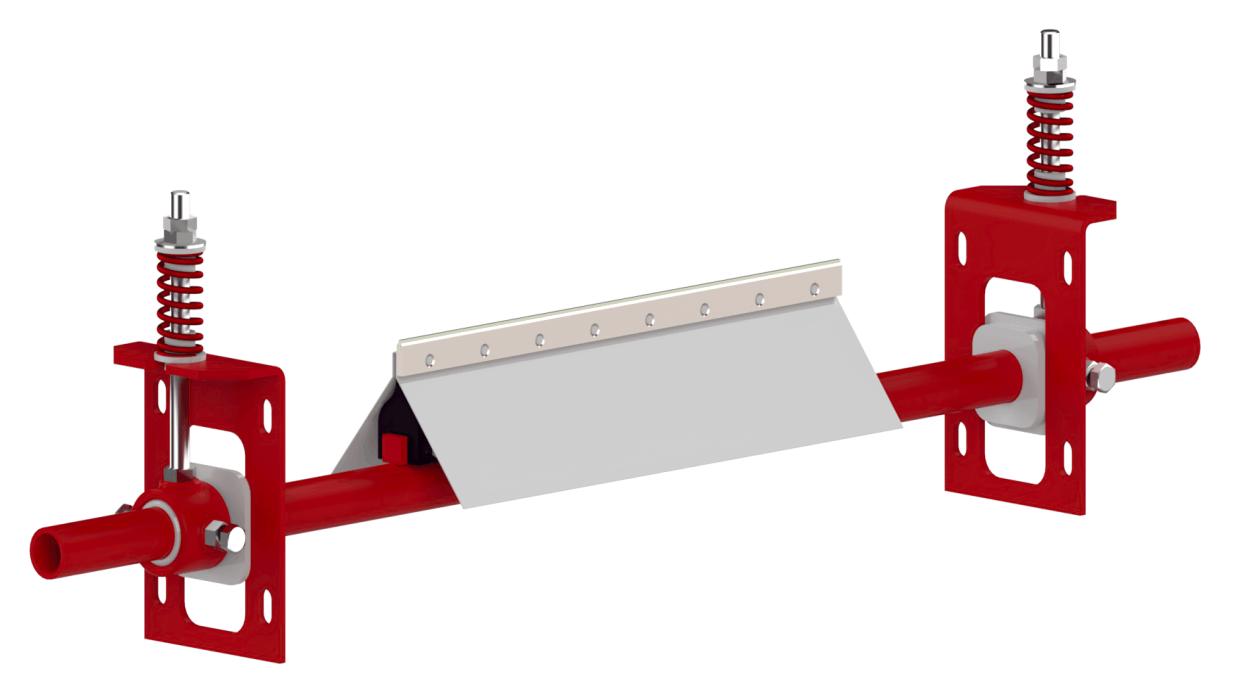

MCS3 TC
The MCS3 secondary cleaner is an excellent
option to reduce the amount of carry back
returned down the conveyor line.
The MCS3 allows for individual blade
movement as each blade/cushion is
individually mounted. Can be used as a stand
alone cleaner, or for improved performance
add in a pre cleaner on the head pulley.
The MCS3 cleaner is suitable for conveyor
belts with mechanical fasteners. In addition the
MCS3 is used for reversing / feeder conveyors.
2 blade options are available (TI) Tungsten
Impact blade for mechanical fasteners or (TL)
Tungsten Long-life blade were belt conditions
are ideal.
Technical informations
| MCS3 TC | |
| Blade Material | TC - Tungsten Carbide |
| Blade Increments | 150mm |
| Belt Speed | up to 5,0m/s |
| Reversing Belts | Yes |
| Mechanical Fasteners | Yes |

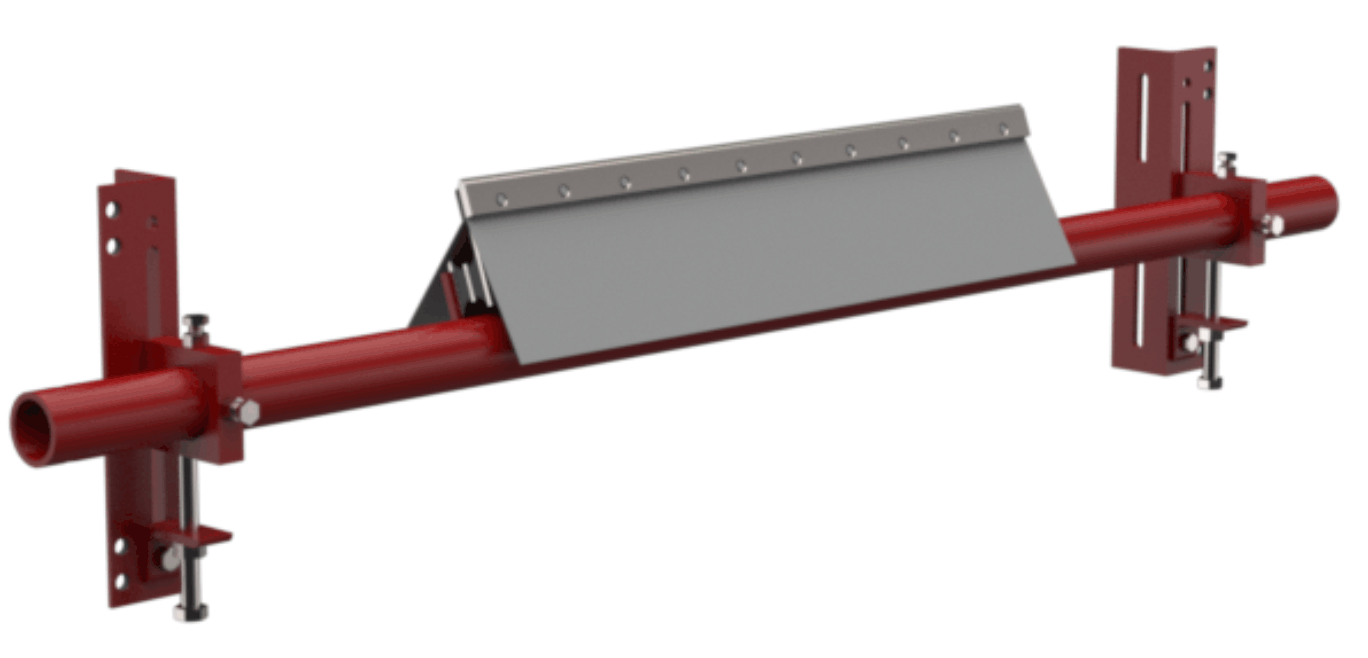

MCS4 TC
The MCS4 secondary cleaner is an excellent
option to reduce the amount of carry back
returned down the conveyor line.
The MCS4 allows for individual blade
movement as each blade/cushion is
individually mounted. Can be used as a stand
alone cleaner, or for improved performance
add in a pre cleaner on the head pulley.
The MCS4 is suitable for conveyors with
mechanical fasteners.
Technical Informations
| MCS4 TC | |
| Blade Material | TC Tungsten Carbide |
| Blade Increments | 150mm |
| Belt Speed | up to 5,0m/s |
| Reversing Belts | No |
| Mechanical Fasteners | Yes |
MCS5 TC
Heavy Duty MCS5 secondary cleaner is an
excellent option to reduce the amount of carry
back returned down the conveyor line. The
MCS5 arrangement has a special hardened
steel heat treated blade to with stand abrasion,
impact and durability.
The MCS5 allows for individual blade
movement as each blade/cushion is
individually mounted. Can be used as a stand
alone cleaner or for improved performance
add in a pre cleaner on the head pulley.
The MCS5 is suitable for conveyors with
mechanical fasteners.
| MCS5 TC | |
| Blade Material | TC - Tungsten Carbide |
| Blade Increments | 150mm |
| Belt Speed | up to 5,0m/s |
| Reversing Belts | Yes |
| Mechanical Fasteners | Yes |
